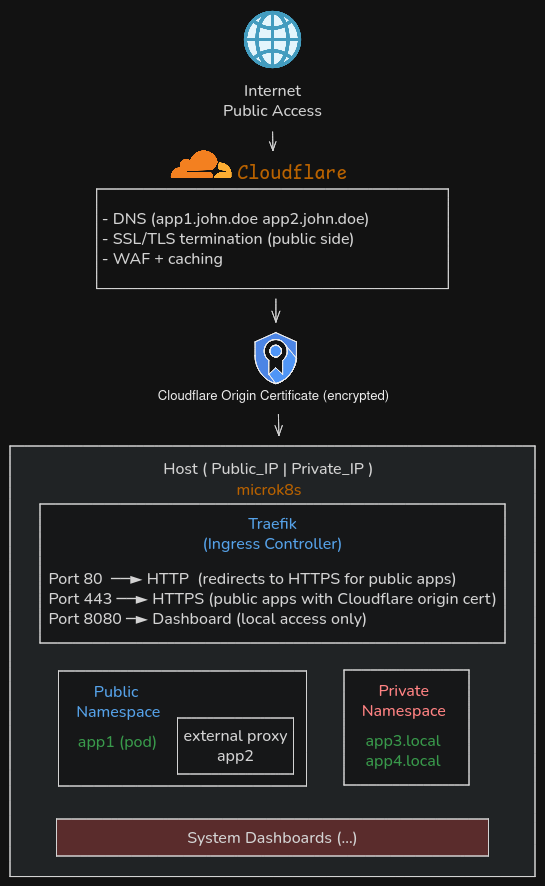

MicroK8s with Traefik: Public and Private Application Deployment

# Install MicroK8s
sudo snap install microk8s --classic

# Add current user to microk8s group (avoids sudo for kubectl)
sudo usermod -aG microk8s $USER

# Apply group changes
newgrp microk8s

# Verify installation
microk8s status --wait-ready

# DNS - Required for service discovery within the cluster
microk8s enable dns

# Storage - Required for PersistentVolumeClaims
microk8s enable hostpath-storage

# Metrics Server - Required for Kubernetes Dashboard resource metrics
microk8s enable metrics-server

# Check node status
microk8s kubectl get nodes

# Expected output:
# NAME            STATUS   ROLES    AGE   VERSION
# your-hostname   Ready    <none>   1m    v1.28.x

mkdir -p ~/my_k8s/{traefik,apps/public,apps/private,scripts}
cd ~/my_k8s

---
apiVersion: v1
kind: Namespace
metadata:
  name: publicapps
  labels:
    app.kubernetes.io/purpose: public
---
apiVersion: v1
kind: Namespace
metadata:
  name: privateapps
  labels:
    app.kubernetes.io/purpose: private
---
apiVersion: v1
kind: Namespace
metadata:
  name: traefik-system

# Abbreviated - full CRDs available at:
# https://doc.traefik.io/traefik/reference/dynamic-configuration/kubernetes-crd/

apiVersion: apiextensions.k8s.io/v1
kind: CustomResourceDefinition
metadata:
  name: ingressroutes.traefik.io
spec:
  group: traefik.io
  names:
    kind: IngressRoute
    plural: ingressroutes
  scope: Namespaced
  versions:
    - name: v1alpha1
      served: true
      storage: true
      schema:
        openAPIV3Schema:
          type: object
          # ... schema definition

---
apiVersion: v1
kind: ServiceAccount
metadata:
  name: traefik
  namespace: traefik-system
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  name: traefik
rules:
  - apiGroups: [""]
    resources: ["services", "endpoints", "secrets"]
    verbs: ["get", "list", "watch"]
  - apiGroups: ["extensions", "networking.k8s.io"]
    resources: ["ingresses", "ingressclasses"]
    verbs: ["get", "list", "watch"]
  - apiGroups: ["traefik.io"]
    resources: ["ingressroutes", "middlewares", "tlsoptions", "serverstransports"]
    verbs: ["get", "list", "watch"]
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: traefik
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: traefik
subjects:
  - kind: ServiceAccount
    name: traefik
    namespace: traefik-system

---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: traefik
  namespace: traefik-system
  labels:
    app: traefik
spec:
  replicas: 1
  selector:
    matchLabels:
      app: traefik
  template:
    metadata:
      labels:
        app: traefik
    spec:
      serviceAccountName: traefik
      containers:
        - name: traefik
          image: traefik:v3.0
          args:
            - --api.insecure=true
            - --entrypoints.web.address=:80
            - --entrypoints.websecure.address=:443
            - --providers.kubernetesingress
            - --providers.kubernetescrd
            - --log.level=INFO
          ports:
            - name: web
              containerPort: 80
              hostPort: 80        # Bind directly to host port
            - name: websecure
              containerPort: 443
              hostPort: 443       # Bind directly to host port
            - name: dashboard
              containerPort: 8080
              hostPort: 8080      # Dashboard on host port
          securityContext:
            capabilities:
              drop:
                - ALL
              add:
                - NET_BIND_SERVICE
            readOnlyRootFilesystem: true
            runAsNonRoot: false
            runAsUser: 0
---
apiVersion: v1
kind: Service
metadata:
  name: traefik
  namespace: traefik-system
spec:
  type: ClusterIP
  selector:
    app: traefik
  ports:
    - name: web
      port: 80
      targetPort: 80
    - name: websecure
      port: 443
      targetPort: 443
    - name: dashboard
      port: 8080
      targetPort: 8080

---
# PersistentVolumeClaims for data persistence
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: app1-data
  namespace: publicapps
spec:
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: 5Gi
---
# Deployment - runs the container
apiVersion: apps/v1
kind: Deployment
metadata:
  name: app1
  namespace: publicapps
  labels:
    app: app1
  annotations:
    # Keel annotations for automatic updates
    keel.sh/policy: all
    keel.sh/trigger: poll
    keel.sh/pollSchedule: "@every 30m"
spec:
  replicas: 1
  selector:
    matchLabels:
      app: app1
  template:
    metadata:
      labels:
        app: app1
    spec:
      containers:
        - name: app1
          image: yourregistry/app1:latest
          imagePullPolicy: Always
          ports:
            - containerPort: 8000
          volumeMounts:
            - name: data
              mountPath: /app/data
      volumes:
        - name: data
          persistentVolumeClaim:
            claimName: app1-data
---
# Service - internal cluster endpoint
apiVersion: v1
kind: Service
metadata:
  name: app1
  namespace: publicapps
spec:
  selector:
    app: app1
  ports:
    - port: 8000
      targetPort: 8000
---
# IngressRoute - HTTPS routing
apiVersion: traefik.io/v1alpha1
kind: IngressRoute
metadata:
  name: app1-https
  namespace: publicapps
spec:
  entryPoints:
    - websecure
  routes:
    - match: Host(`app1.john.doe`)
      kind: Rule
      middlewares:
        - name: cloudflare-only
          namespace: traefik-system
      services:
        - name: app1
          port: 8000
  tls:
    secretName: cloudflare-origin-tls
---
# IngressRoute - HTTP redirect to HTTPS
apiVersion: traefik.io/v1alpha1
kind: IngressRoute
metadata:
  name: app1-http-redirect
  namespace: publicapps
spec:
  entryPoints:
    - web
  routes:
    - match: Host(`app1.john.doe`)
      kind: Rule
      middlewares:
        - name: redirect-https
        - name: cloudflare-only
          namespace: traefik-system
      services:
        - name: app1
          port: 8000
---
# Middleware - HTTP to HTTPS redirect
apiVersion: traefik.io/v1alpha1
kind: Middleware
metadata:
  name: redirect-https
  namespace: publicapps
spec:
  redirectScheme:
    scheme: https
    permanent: true

---
# Manual Endpoints - point to external IP
apiVersion: v1
kind: Endpoints
metadata:
  name: app2-backend
  namespace: publicapps
subsets:
  - addresses:
      - ip: EXTERNAL_HOST_IP   # Replace with actual IP (e.g., 10.0.0.6)
    ports:
      - port: 8000
---
# Headless Service - uses the manual endpoints
apiVersion: v1
kind: Service
metadata:
  name: app2-backend
  namespace: publicapps
spec:
  clusterIP: None              # Headless service
  ports:
    - port: 8000
      targetPort: 8000
---
# IngressRoute - HTTPS routing
apiVersion: traefik.io/v1alpha1
kind: IngressRoute
metadata:
  name: app2-https
  namespace: publicapps
spec:
  entryPoints:
    - websecure
  routes:
    - match: Host(`app2.john.doe`)
      kind: Rule
      middlewares:
        - name: cloudflare-only
          namespace: traefik-system
      services:
        - name: app2-backend
          port: 8000
  tls:
    secretName: cloudflare-origin-tls
---
# HTTP to HTTPS redirect
apiVersion: traefik.io/v1alpha1
kind: IngressRoute
metadata:
  name: app2-http-redirect
  namespace: publicapps
spec:
  entryPoints:
    - web
  routes:
    - match: Host(`app2.john.doe`)
      kind: Rule
      middlewares:
        - name: redirect-https
          namespace: publicapps
        - name: cloudflare-only
          namespace: traefik-system
      services:
        - name: app2-backend
          port: 8000

---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: app3
  namespace: privateapps
  labels:
    app: app3
  annotations:
    keel.sh/policy: minor
    keel.sh/trigger: poll
    keel.sh/pollSchedule: "@every 6h"
spec:
  replicas: 1
  selector:
    matchLabels:
      app: app3
  template:
    metadata:
      labels:
        app: app3
    spec:
      containers:
        - name: app3
          image: excalidraw/excalidraw:latest
          imagePullPolicy: Always
          ports:
            - containerPort: 80
          resources:
            requests:
              memory: "128Mi"
              cpu: "100m"
            limits:
              memory: "256Mi"
              cpu: "500m"
---
apiVersion: v1
kind: Service
metadata:
  name: app3
  namespace: privateapps
spec:
  selector:
    app: app3
  ports:
    - port: 80
      targetPort: 80
---
# IngressRoute - Local access via HTTP
apiVersion: traefik.io/v1alpha1
kind: IngressRoute
metadata:
  name: app3-local
  namespace: privateapps
spec:
  entryPoints:
    - web                      # HTTP only, no TLS
  routes:
    - match: Host(`app3.local`) || Host(`PRIVATE_IP`)
      kind: Rule
      services:
        - name: app3
          port: 80

apiVersion: traefik.io/v1alpha1
kind: Middleware
metadata:
  name: cloudflare-only
  namespace: traefik-system
spec:
  ipAllowList:
    sourceRange:
      # Cloudflare IPv4 ranges
      - 173.245.48.0/20
      - 103.21.244.0/22
      - 103.22.200.0/22
      - 103.31.4.0/22
      - 141.101.64.0/18
      - 108.162.192.0/18
      - 190.93.240.0/20
      - 188.114.96.0/20
      - 197.234.240.0/22
      - 198.41.128.0/17
      - 162.158.0.0/15
      - 104.16.0.0/13
      - 104.24.0.0/14
      - 172.64.0.0/13
      - 131.0.72.0/22
      # Cloudflare IPv6 ranges
      - 2400:cb00::/32
      - 2606:4700::/32
      - 2803:f800::/32
      - 2405:b500::/32
      - 2405:8100::/32
      - 2a06:98c0::/29
      - 2c0f:f248::/32

#!/bin/bash
set -e

echo "Fetching latest Cloudflare IP ranges..."
IPV4=$(curl -s https://www.cloudflare.com/ips-v4)
IPV6=$(curl -s https://www.cloudflare.com/ips-v6)

cat <<EOF > traefik/cloudflare-ipallowlist.yaml
apiVersion: traefik.io/v1alpha1
kind: Middleware
metadata:
  name: cloudflare-only
  namespace: traefik-system
spec:
  ipAllowList:
    sourceRange:
EOF

for ip in $IPV4; do echo "      - $ip" >> traefik/cloudflare-ipallowlist.yaml; done
for ip in $IPV6; do echo "      - $ip" >> traefik/cloudflare-ipallowlist.yaml; done

echo "Updated traefik/cloudflare-ipallowlist.yaml"
echo "Apply with: microk8s kubectl apply -f traefik/cloudflare-ipallowlist.yaml"

---
apiVersion: v1
kind: Namespace
metadata:
  name: keel
---
apiVersion: v1
kind: ServiceAccount
metadata:
  name: keel
  namespace: keel
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  name: keel
rules:
  - apiGroups: ["", "apps", "extensions", "batch"]
    resources: ["deployments", "daemonsets", "statefulsets", "pods", "services", "secrets", "configmaps"]
    verbs: ["get", "list", "watch", "update", "patch"]
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: keel
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: keel
subjects:
  - kind: ServiceAccount
    name: keel
    namespace: keel
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: keel
  namespace: keel
spec:
  replicas: 1
  selector:
    matchLabels:
      app: keel
  template:
    metadata:
      labels:
        app: keel
    spec:
      serviceAccountName: keel
      containers:
        - name: keel
          image: keelhq/keel:latest
          command: ["/bin/keel"]
          env:
            - name: POLL
              value: "1"
            - name: BASIC_AUTH_USER
              value: "admin"
            - name: BASIC_AUTH_PASSWORD
              value: "admin"        # Change in production!
          ports:
            - containerPort: 9300
              hostPort: 9300        # UI accessible on host

---
apiVersion: v1
kind: Namespace
metadata:
  name: kubernetes-dashboard
---
apiVersion: v1
kind: ServiceAccount
metadata:
  name: kubernetes-dashboard
  namespace: kubernetes-dashboard
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: kubernetes-dashboard
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: cluster-admin        # Full access - restrict in production!
subjects:
  - kind: ServiceAccount
    name: kubernetes-dashboard
    namespace: kubernetes-dashboard
---
apiVersion: v1
kind: Secret
metadata:
  name: kubernetes-dashboard-token
  namespace: kubernetes-dashboard
  annotations:
    kubernetes.io/service-account.name: kubernetes-dashboard
type: kubernetes.io/service-account-token
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: kubernetes-dashboard
  namespace: kubernetes-dashboard
spec:
  replicas: 1
  selector:
    matchLabels:
      app: kubernetes-dashboard
  template:
    metadata:
      labels:
        app: kubernetes-dashboard
    spec:
      serviceAccountName: kubernetes-dashboard
      containers:
        - name: kubernetes-dashboard
          image: kubernetesui/dashboard:v2.7.0
          ports:
            - containerPort: 8443
              hostPort: 9443      # Dashboard on host port 9443
          args:
            - --auto-generate-certificates
            - --namespace=kubernetes-dashboard

#!/bin/bash
# File: get-dashboard-token.sh

TOKEN=$(microk8s kubectl -n kubernetes-dashboard get secret \
  kubernetes-dashboard-token -o jsonpath="{.data.token}" | base64 -d)

echo "Dashboard Token:"
echo "----------------------------------------"
echo "$TOKEN"
echo "----------------------------------------"
echo ""
echo "Access: https://PRIVATE_IP:9443"

#!/bin/bash
set -e

cd "$(dirname "$0")"

echo "=========================================="
echo "  MicroK8s Cluster Deployment"
echo "=========================================="

# Enable addons
echo "=== Enabling addons ==="
microk8s enable dns hostpath-storage metrics-server
microk8s status --wait-ready

# Create namespaces
echo "=== Creating namespaces ==="
microk8s kubectl apply -f 00-namespaces.yaml

# Create TLS secret
echo "=== Creating TLS secret ==="
microk8s kubectl create secret tls cloudflare-origin-tls \
  --cert=cert.pem \
  --key=key.pem \
  -n publicapps \
  --dry-run=client -o yaml | microk8s kubectl apply -f -

# Deploy Traefik
echo "=== Deploying Traefik ==="
microk8s kubectl apply -f traefik/crds.yaml
microk8s kubectl apply -f traefik/rbac.yaml
microk8s kubectl apply -f traefik/deployment.yaml
microk8s kubectl apply -f traefik/cloudflare-ipallowlist.yaml
microk8s kubectl rollout status deployment/traefik -n traefik-system --timeout=120s

# Deploy apps
echo "=== Deploying public apps ==="
for app in apps/public/*.yaml; do
  [ -f "$app" ] && microk8s kubectl apply -f "$app"
done

echo "=== Deploying private apps ==="
for app in apps/private/*.yaml; do
  [ -f "$app" ] && microk8s kubectl apply -f "$app"
done

# Summary
echo ""
echo "=========================================="
echo "  Deployment Complete"
echo "=========================================="
echo ""
echo "PUBLIC APPS (via Cloudflare):"
echo "  https://app1.john.doe"
echo "  https://app2.john.doe"
echo ""
echo "PRIVATE APPS (local network):"
echo "  http://PRIVATE_IP (app3)"
echo ""
echo "DASHBOARDS:"
echo "  Kubernetes: https://PRIVATE_IP:9443"
echo "  Traefik:    http://PRIVATE_IP:8080/dashboard/"
echo "  Keel:       http://PRIVATE_IP:9300"

chmod +x deploy.sh get-dashboard-token.sh scripts/update-cloudflare-ips.sh

microk8s kubectl describe pod <pod-name> -n <namespace>
# Check Events section for errors

# Restart CoreDNS
microk8s kubectl rollout restart deployment/coredns -n kube-system

# Check hostpath-provisioner
microk8s kubectl get pods -n kube-system | grep hostpath
microk8s kubectl rollout restart deployment/hostpath-provisioner -n kube-system

# Check Traefik logs
microk8s kubectl logs deployment/traefik -n traefik-system

# Check routes
curl http://localhost:8080/api/http/routers | python3 -m json.tool

# View all pods
microk8s kubectl get pods -A

# View logs
microk8s kubectl logs deployment/<name> -n <namespace>

# Enter pod shell
microk8s kubectl exec -it <pod> -n <namespace> -- /bin/sh

# Test routing locally
curl -k -H "Host: app1.john.doe" https://localhost:443

# Reset everything
sudo microk8s reset --destroy-storage
./deploy.sh
